ARMANI / ROCA Bathtub
For this project AB RE built mould and prototypes of the new Armani/Roca bathtub to be presented as
"première", at the 2010 Milan Furniture Fair. We worked on:
- 3D modelling for mould design,
- Preparation of the CNC master piece for mould building,
- GRP Plug mould,
- Glass fibre reinforced Polyester prototypes with metallic inserts for fixing the support structure,
- Post-painted prototypes to colour range.

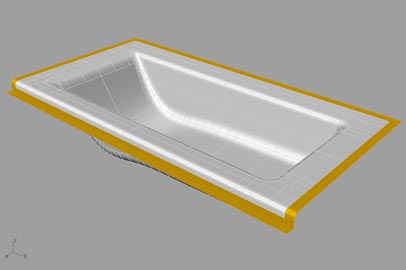

3d Model

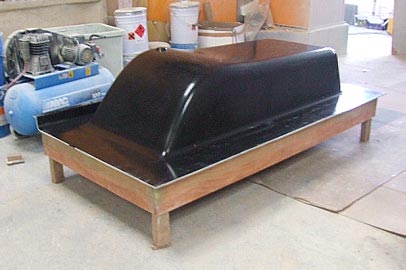

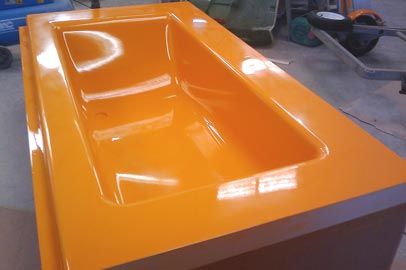

CNC Model

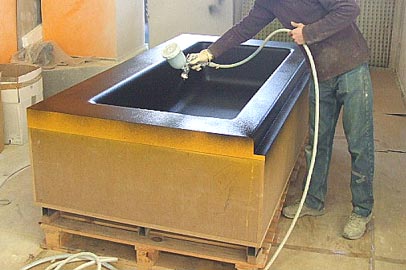

Mould Gel-Coat layer

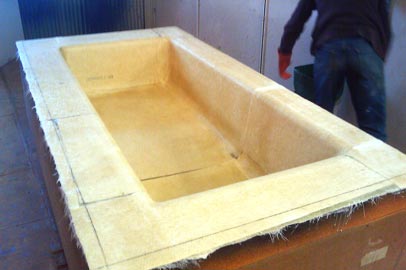

Mould GRP laminate
Mould ready for backing structure fixing

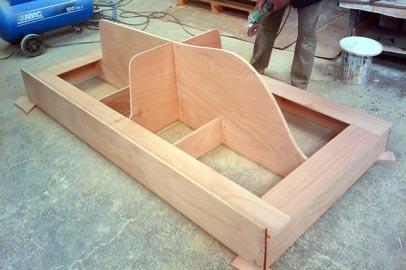

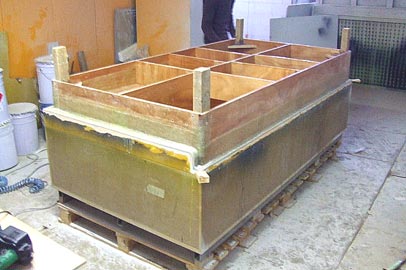

Mould support structure

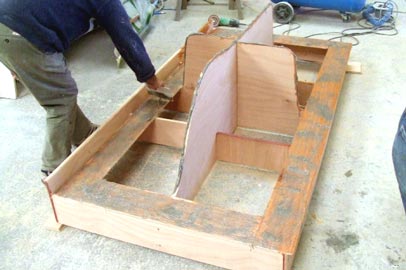

Preparing the support structure gluing
Structure welded to mould
Mould released of model

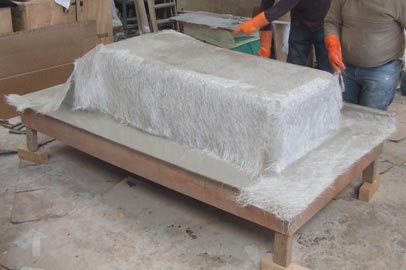

1st prototype lamination

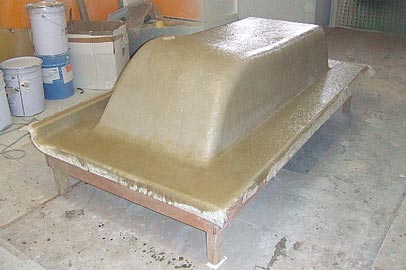

1st prototype lamination ready
Top-Coat on reinforcement laminates

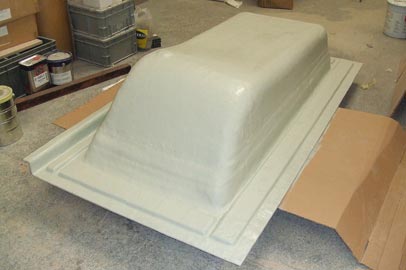

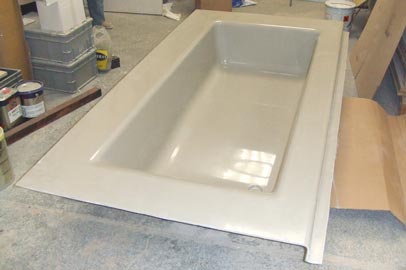

1st prototype released released from mould

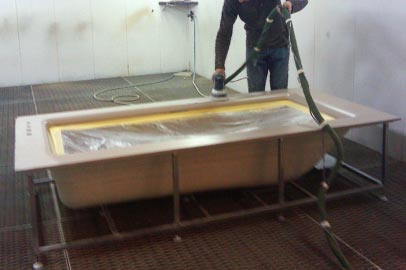

1st Post-painted prototype

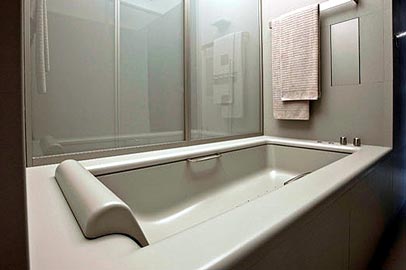

ARMANI/ROCA showroom
